harness and throttle cable positioning
#1
harness and throttle cable positioning
2009 250 I had fuel tank off to adjust valves over the winter and also replaced the throttle cables as a maintenance item -they had a pretty good bend where they attach to the carb- I dont really like the sharp angle they come in at
anyway= when I went to install the fuel tank I noticed I needed to push down a little on the right side and depress the main harness
The main harness runs on top of the throttle cables- that pushed then down some too
I actaully looked at digital pictures I took prior and its all back where it goes
But doesnt anyone else notice this
its a pretty crappy routing on that side by the radiator/.main harness, cables, tank eh?
anyway= when I went to install the fuel tank I noticed I needed to push down a little on the right side and depress the main harness
The main harness runs on top of the throttle cables- that pushed then down some too
I actaully looked at digital pictures I took prior and its all back where it goes
But doesnt anyone else notice this
its a pretty crappy routing on that side by the radiator/.main harness, cables, tank eh?
Last edited by MJG; 03-12-2013 at 01:07 AM. Reason: add
#2
I did'nt notice any problem with my 07, when I had it apart. If you are seeing interference or pinching on the cable your smart to address it. Always good to start the bikie and steer lock to lock to hear any difference in idle, indicating binding
good luck
marc
good luck
marc
#3
even more so with a clarke tank (cable squashed down), do you have the little plastic cradle piece in place that the cables lay over?
2009 250 I had fuel tank off to adjust valves over the winter and also replaced the throttle cables as a maintenance item -they had a pretty good bend where they attach to the carb- I dont really like the sharp angle they come in at
anyway= when I went to install the fuel tank I noticed I needed to push down a little on the right side and depress the main harness
The main harness runs on top of the throttle cables- that pushed then down some too
I actaully looked at digital pictures I took prior and its all back where it goes
But doesnt anyone else notice this
its a pretty crappy routing on that side by the radiator/.main harness, cables, tank eh?
anyway= when I went to install the fuel tank I noticed I needed to push down a little on the right side and depress the main harness
The main harness runs on top of the throttle cables- that pushed then down some too
I actaully looked at digital pictures I took prior and its all back where it goes
But doesnt anyone else notice this
its a pretty crappy routing on that side by the radiator/.main harness, cables, tank eh?
#4
When I installed my IMS tank on my 06 I had to 'unhook' and reroute those wires on/to the left side. Maybe give that a try. Not sure if you even can on an 09. I have a Vortex throttle , so only 1 cable on the right side. Later.
Last edited by NEWPARTSRULE; 03-13-2013 at 12:15 AM.
#5
what plastic cradle piece are you referring to? my bike is 2009 and I dont recall any cradle piece
got a picture from bike or microfiche #
Thanks
#8

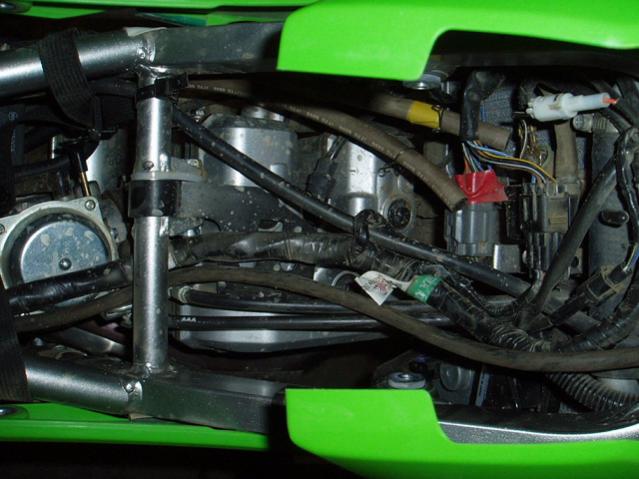

thanks for that picture- I appreciate you posting it!
that is exactly my routing- I took pics before I took apart
When you install tank you need to slightly push down that harness and that in turn pushes down the throttle cables and bends them more than I would like
They bend pretty good coming out of the carb too
They operate smoothly and not binding when turning or anything
Just a poor design in my opinion -I like cables free, clear and not hard angles
that is exactly my routing- I took pics before I took apart
When you install tank you need to slightly push down that harness and that in turn pushes down the throttle cables and bends them more than I would like
They bend pretty good coming out of the carb too
They operate smoothly and not binding when turning or anything
Just a poor design in my opinion -I like cables free, clear and not hard angles
#9
I hear you about liking the cables free but lots of things in mechanics require give and take. There just isn't the room to for it to be any other way so as long things work freely we'll have to live with it.
