Broken gauge glass replacement, pics
#1
![Default](https://www.kawasakiforums.com/forum/images/icons/icon1.gif)
I guess I'm kind of rough on the ol' KLX
It's fun to push my own limits. Exceeding my limits results in broken stuff. During the Leaf River D/S ride (ride report here https://www.kawasakiforums.com/forum...ad.php?t=32160 ) I laid the bike over into a tree. I basically lost my balance in a slow spot, and leaned it over into the tree. The hit must have put too much pressure on the gauge cluster causing the glass to shatter. Not cool.
![](http://i27.photobucket.com/albums/c174/danrkfd/DualsportrideLeafRiver4-11-201043.jpg)
The gauge housing itself was fairly easy to remove. The glass is permanently installed in the housing. At the factory, the glass inserts are placed inside the housing and then a plastic backing ring is glued in behind them. I used pliers to pull the glass and the rubber seal out, and then went around the inside of the opening with a Dremel to cut out the glued in backing ring. I then measured the diameter of the openings and made a cardboard pattern that fit the opening. Next I traced around the patterns on some Plexiglas and cut them out on the band saw. To hold the plexi in place I ran a small bead of silicone around the inside of the opening. Laid the the replacements into the silicone and added another small bead on the other side of the plexi. I think it turned out well. I'm also thinking that the plastic will hold up better than glass.
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5829.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5830.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5831.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5833.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5834.jpg)
Dan
![Big Grin](https://www.kawasakiforums.com/forum/images/smilies/biggrin.gif)
![](http://i27.photobucket.com/albums/c174/danrkfd/DualsportrideLeafRiver4-11-201043.jpg)
The gauge housing itself was fairly easy to remove. The glass is permanently installed in the housing. At the factory, the glass inserts are placed inside the housing and then a plastic backing ring is glued in behind them. I used pliers to pull the glass and the rubber seal out, and then went around the inside of the opening with a Dremel to cut out the glued in backing ring. I then measured the diameter of the openings and made a cardboard pattern that fit the opening. Next I traced around the patterns on some Plexiglas and cut them out on the band saw. To hold the plexi in place I ran a small bead of silicone around the inside of the opening. Laid the the replacements into the silicone and added another small bead on the other side of the plexi. I think it turned out well. I'm also thinking that the plastic will hold up better than glass.
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5829.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5830.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5831.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5833.jpg)
![](http://i27.photobucket.com/albums/c174/danrkfd/IMG_5834.jpg)
Dan
#3
![Default](https://www.kawasakiforums.com/forum/images/icons/icon1.gif)
Awasome job!!!
#5
![Default](https://www.kawasakiforums.com/forum/images/icons/icon1.gif)
@canklx , your right I will have to watch it when wiping it off. If it gets too bad I can always re-replace it.
Dan
#9
![Default](https://www.kawasakiforums.com/forum/images/icons/icon1.gif)
Weird...
![Name: KLR4.jpg
Views: 657
Size: 58.8 KB](https://www.kawasakiforums.com/forum/attachments/klx-250s-71/17030d1501284012-broken-gauge-glass-replacement-pics-klr4.jpg)

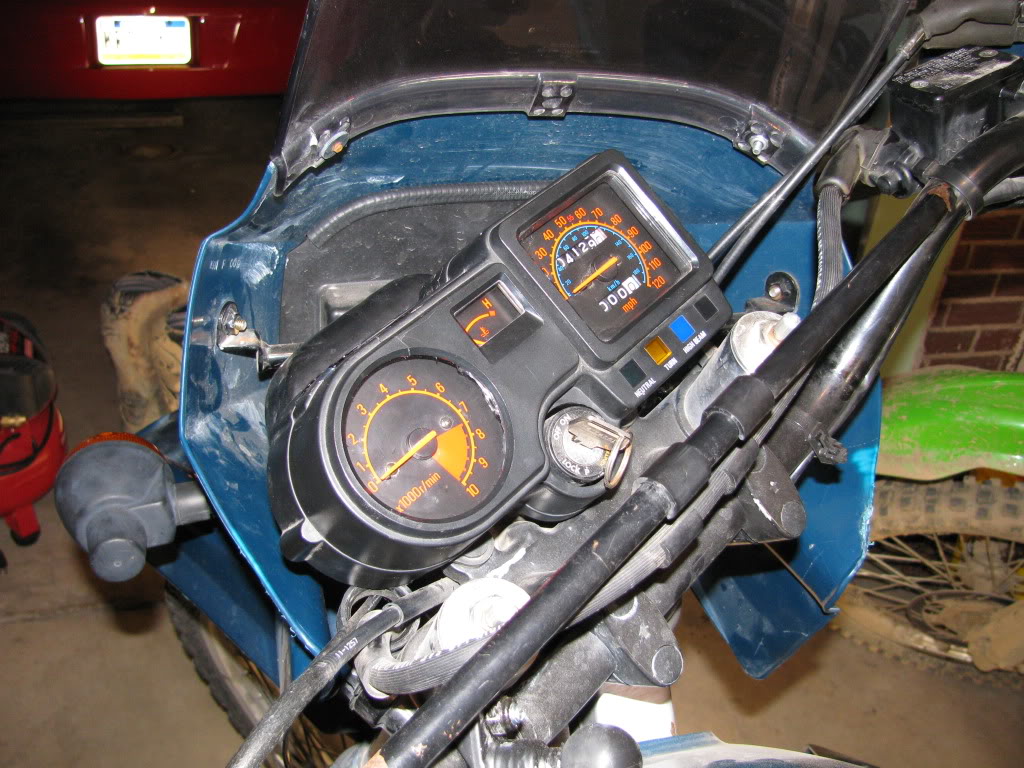

![Name: new031.jpg
Views: 691
Size: 179.0 KB](https://www.kawasakiforums.com/forum/attachments/klx-250s-71/17031d1501284012-broken-gauge-glass-replacement-pics-new031.jpg)
But you know why they are glass right? So they dont scratch, i replaced mine with plexi too... but dont try to clean it off with your fingers if they are all muddy, it will scratch.
![Name: KLR4.jpg
Views: 657
Size: 58.8 KB](https://www.kawasakiforums.com/forum/attachments/klx-250s-71/17030d1501284012-broken-gauge-glass-replacement-pics-klr4.jpg)
![Name: new031.jpg
Views: 691
Size: 179.0 KB](https://www.kawasakiforums.com/forum/attachments/klx-250s-71/17031d1501284012-broken-gauge-glass-replacement-pics-new031.jpg)
But you know why they are glass right? So they dont scratch, i replaced mine with plexi too... but dont try to clean it off with your fingers if they are all muddy, it will scratch.
#10
![Default](https://www.kawasakiforums.com/forum/images/icons/icon1.gif)
Dan
